Specification
Features
- Powered by 12th-generation Intel® Core™
i5-1235U/i7-1255U Processor - Wi-Fi 6, Bluetooth 5.1, and expandable 4G
(M.2 interface) - Rich interfaces, including multiple

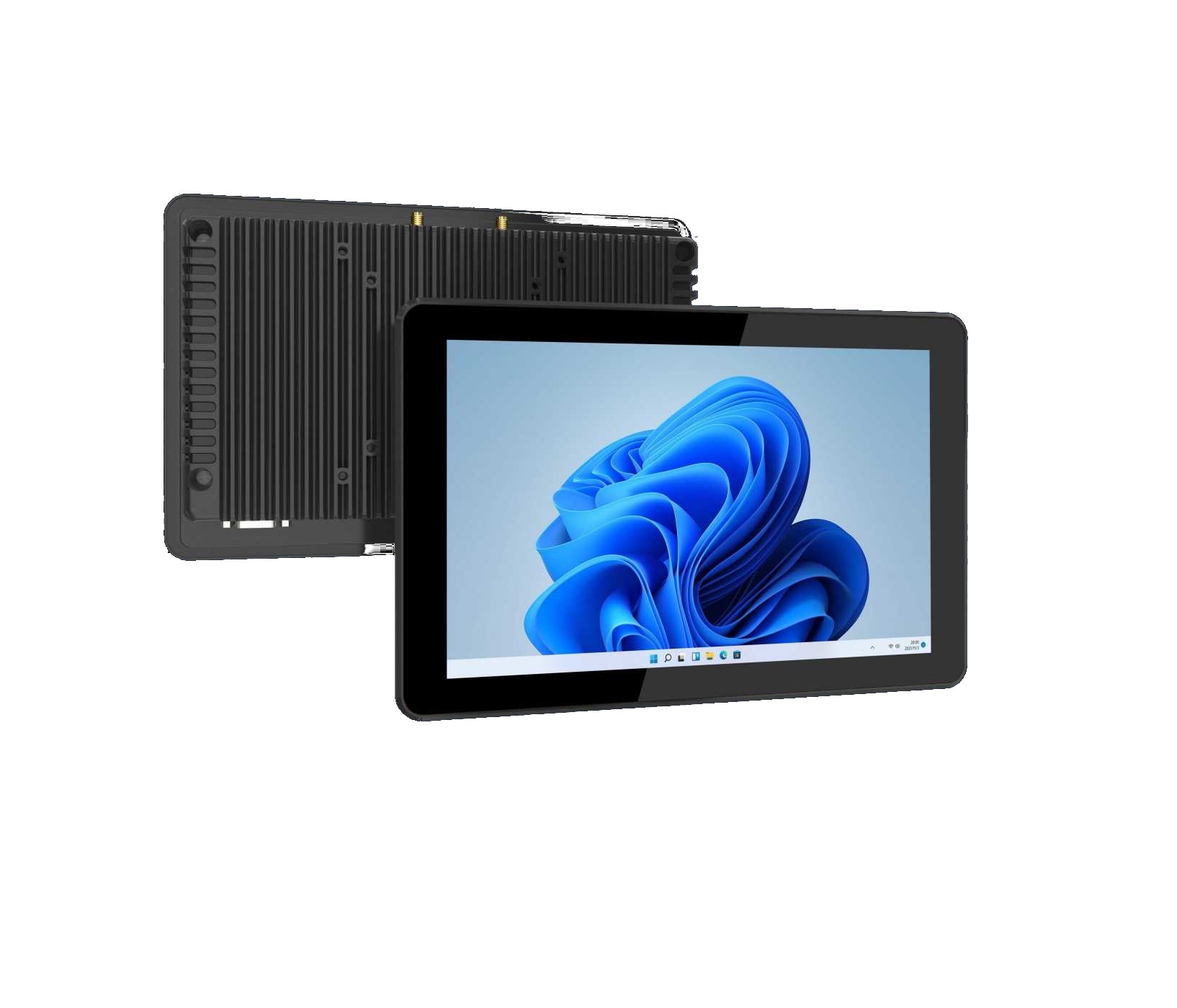

USB/RJ45/DB9/HDMI and other I/O ports - 10.1-inch flat capacitive touch panel
is impact-resistant - Fanless design, using a large-area
uniform heating fin - Wide voltage and temperature design,
IP65-rated dustproof and waterproof
| Durability | Front panel IP65 compliant +8kV contact discharge, ±15kV air discharge |
| Operating System | Windows 11 Pro Optional Windows 11 Home/IOT |
| Processor | Intel 15 1235U (12MB Cache up to 4.4GHz, 10 Cores, 12 threads, TDP 15W) Optional Intel 17 1255U (12MB Cache, up to 4.7GHz,10 Cores, 12 threads, TDP 15W) |
| Graphics | Intel® Iris® Xe Graphics eligible |
| Memory | 16GB LPDDR4x on board |
| Storage | 128GB SATA SSD Optional 256GB/512GB PCIe SSD |
| Display | 10.1", HD (800x1280), 700 nits 10 point capacitive touch screen |
| Audio | Optional 2W speaker |
| Keyboard & Input | Power key x1 |
| Network & Connectivity | Intel® Wi-Fi 6 (802.11 ax) Bluetooth® V5.1 Optional 4G LTE LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8 GSM: 900/1800 China (China Unicom, China Telecom, China Mobile), Europe, Middle East, Africa, Taiwan, Japan |
| Security | Integrated TPM2.0 |
| I/O Interface | SIM card x 1 USB3.0 (Type-A) x 4 3.5mm AudioJack x 1 HDMI 2.0 (Type-A) x 1 10/100/1000 Ethernet (RJ45) x 2 Serial port (RS232: D-sub, 9-pin) x 2 Optional RS232 x 1/RS485 x 1 DC5.5mm-In jack x 1 (support 12-24V) SMA x 2 |
| Battery & Charging | 100-240V, 50Hz-60Hz, 64.98Wut DC 19V/3.42A Separated 3V/220mAh RTC |
| Environment | Operating temperature: -20°C to 60°C (-4°F~140°F) Storage tmperature: -30°C to 70°C (-22°F-158°F) Humidity: 95% (non-condensing) |
| Dimension | 257.2 mm(L) x 170 mm(W) x 45.95 mm(H) |
| Weight | 1.2 kg |
| Accessories | Standard: Adapter, Hook Assembly, Antenna |
| Warranty | One-year limited warranty standard |
